Related Product
RCFS114-50JFNA
1-1/4" RADIAFLEX® RCF Cable, A-series
- Size : 1-1/4
- Max. Operating Frequency, MHz : 2750
- Impedance,Ohm,Ohm : 50 +/- 2
- Jacket : JFN
- Jacket Color : Standard Black, other colors on request
- Jacket Description : Halogen free, non corrosive, flame retardant, low smoke, polyolefin
- Slot Design : Milled (Two-Row)
- Frequency Selection, MHz : 600, 900, 1800/1900, 2200, 2400, 2500, 2700
Add to my e-catalog
Download PDF datasheet
View related documents
See related products
RADIAFLEX Selection Guide
RCFS114-50JFLA
1-1/4" RADIAFLEX® RCF Cable, A-series
- Size : 1-1/4
- Max. Operating Frequency, MHz : 2750
- Impedance,Ohm,Ohm : 50 +/- 2
- Jacket : JFL
- Jacket Color : Standard Black, other colors on request
- Jacket Description : Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss
- Slot Design : Milled (Two-Row)
- Frequency Selection, MHz : 600, 900, 1800/1900, 2200, 2400, 2500, 2700
Add to my e-catalog
Download PDF datasheet
View related documents
See related products
RADIAFLEX Selection Guide

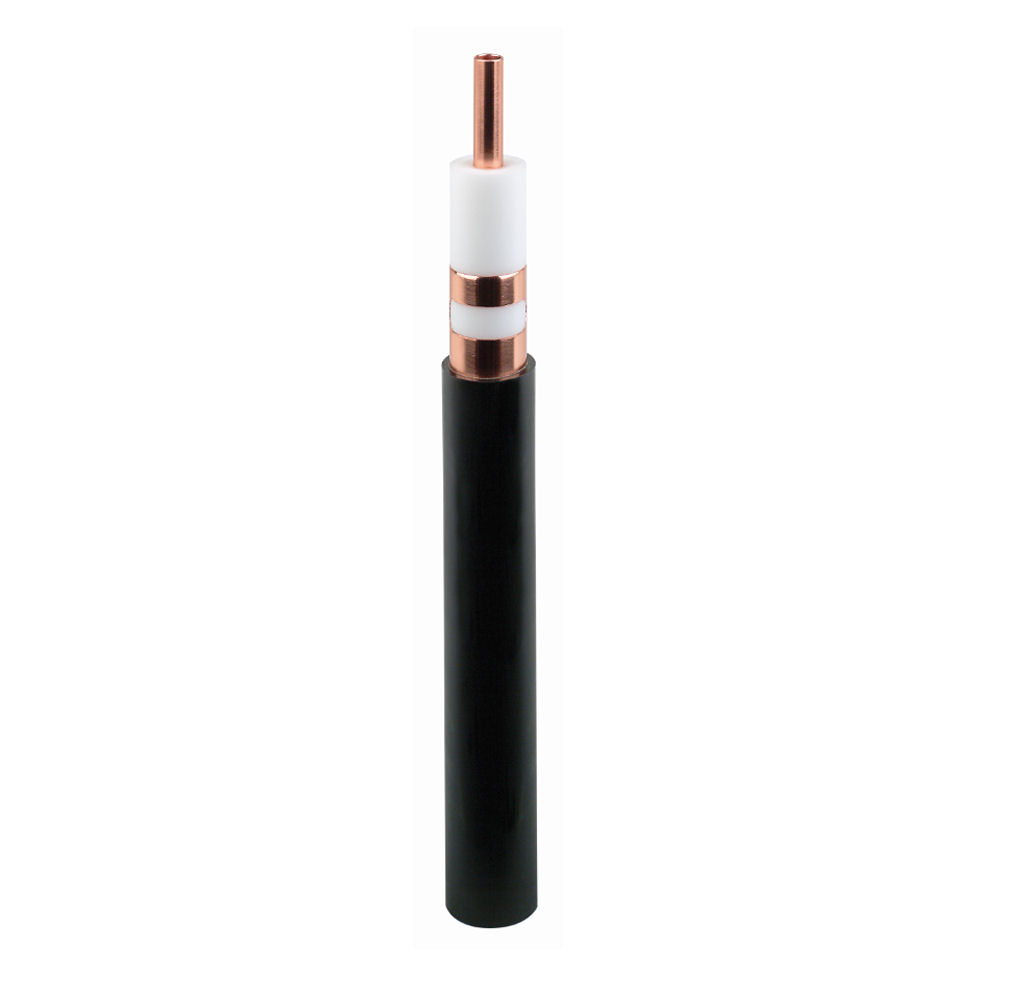

RLF78-50JFLA
7/8" RADIAFLEX® RLF Cable, A-series
- Size : 7/8
- Max. Operating Frequency, MHz : 1000
- Impedance,Ohm,Ohm : 50 +/- 2
- Jacket : JFL
- Jacket Color : Standard Black, other colors on request
- Jacket Description : Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss
- Slot Design : Groups of slots at large intervals
- Frequency Selection, MHz : 600, 900
Add to my e-catalog
Download PDF datasheet
View related documents
See related products
RADIAFLEX Selection Guide
RLF78-50JFNA
7/8" RADIAFLEX® RLF Cable, A-series
- Size : 7/8
- Max. Operating Frequency, MHz : 1000
- Impedance,Ohm,Ohm : 50 +/- 2
- Jacket : JFN
- Jacket Color : Standard Black, other colors on request
- Jacket Description : Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin
- Slot Design : Groups of slots at large intervals
- Frequency Selection, MHz : 600, 900
Add to my e-catalog
Download PDF datasheet
View related documents
See related products
RADIAFLEX Selection Guide
Add to my e-catalog
Download PDF datasheet
View related documents
See related products
Click on "See document" to request radiating pattern files
