716F-NXM
Coaxial Adapter 7-16 Female to NEX10 Male
Rev : A | Rev date : 16 Feb 2022
Coaxial Adapter, 7-16 Female / NEX10 Male
FEATURES / BENEFITS
Structure |
|---|
| Product Line | | Coaxial Cable Components | | Product Type | | Coaxial Adapter |
|

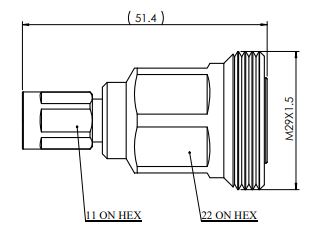

Mechanical Specifications |
|---|
| Connector A | | 7-16 Female | | Center Contact Connector A | | Copper, silver plated | | Outer Contact Connector A | | Copper, Tin-Zinc plated | | Connector B | | NEX10 Male | | Center Contact Connector B | | Copper, silver plated | | Outer Contact Connector B | | Copper, Tin-Zinc plated | | Dielectric | | PTFE | | Sealing class | | IP68, connected |
|
Electrical Specifications |
|---|
| Frequency Range - MHz | | DC - 6000 | | VSWR, Return Loss | VSWR (dB) | DC TO 6GHz VSWR 1.13 (24.29) | | Insertion Loss, dB (Max) | dB | 0.05 | | 3rd Order IM Product @ 2x20 Watts | dBc | < -165 |
|
Packaging Information |
|---|
| Package Quantity | | 1 |
|
