716F-SEAL

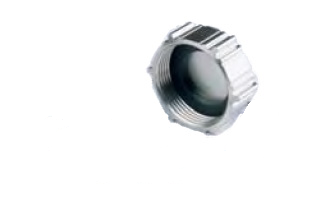

Blind cover for 7-16 DIN Female connector

Rev : G | Rev date : 23 Jan 2023

Blind cover for connector 7-16 DIN Female with sealing

FEATURES / BENEFITS


External Document Links

Notes

Technical features

Structure

Product LineCoaxial Cable Components
Product TypeCoaxial Adapter
Coaxial Cable TypeFoam Dielectric, Ultraflexible Foam Dielectric, Radiating Cable
Connector Interface7-16 DIN Female

Mechanical Specifications

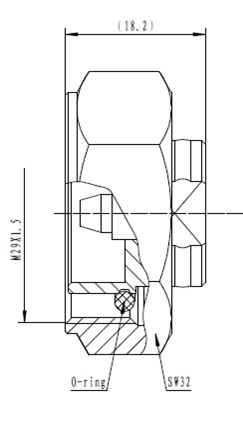

ConfigurationCover (blind) for 7-16 DIN Female
BodyCopper alloy, Nickel plated
Gasket

Rubber

Sealing classIP68

Temperature Specifications

Operation Temperature °C (°F)

-45 to 85 (-49 to 185)

Packaging Information

Package Quantity1
