716M-LCF12-CP01
7-16 Male Compression Connector for 1/2" Coaxial Low Loss Cable, Straight

Rev : A | Rev date : 06 Jun 2024
RFS Technologies' high performance Compression Connectors are designed for CELLFLEX®  cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment using compressing technologies. All RFS Technologies' connectors are fully tested for mechanical and electrical compliance to industry specifications.
Sealing against outer conductor and jacket by means of the o-ring and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.

FEATURES / BENEFITS

  • One-piece design together with Compression tools to minimize installation time required, improve installation security
  • Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
  • Watertight sealing to IP68
  • Tri metal alloy plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
  • RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis


Technical features

General Specifications

Transmission Line TypeCoaxial Cable LCF12, ICA12, RCA12
Cable Size1/2
Cable TypeFoam or Air Dielectric, Low Loss
Model SeriesLCF12, ICA12, RCA12-50 Series
Connector Interface7-16
Connector Type

Compression Connector PREMIUM Straight

Sealing Method

360° Compression

GenderMale

Electrical Specifications

Nominal Impedance, ohmsOhm50
Insertion loss dB

≤0.05

3rd Order IM Product @ 2x20 Watts dBc
-160
Maximum Frequency GHz6
VSWR, Return LossVSWR (dB)DC<f≤3.0 GHz: 1.05 (32.3)
3.0<f≤6.0 GHz: 1.10 (26.4)

Mechanical Specifications

Plating Outer/InnerTri metal alloy / Silver

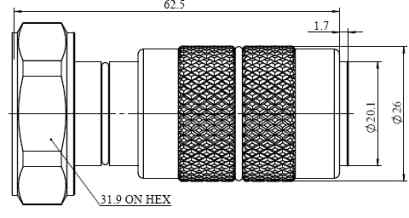

Length mm (in)62.5 (2.46)
Outer Diameter mm (in)26 (1.024)
Weight kg (lb)0.149 (0.33)
Inner Contact AttachmentCompression
Outer Contact Attachment360° clamping

Accessories

Trimming ToolAFBXD05‐2(Trimming), AFBXD07‐4(Foam Remover)

Testing and Environmental

Waterproof LevelIP68, additional weather-proofing boot AF2040451 needs to be installed before cable jumper assembly
Operation Temperature °C(°F)-40 to 85 (-40 to 185)
