- HBT058-13U1SS-xxFS
HBT058-13U1SS-xxFS
HYBRIFLEX® RRH Hybrid Jumper, 5/8", 1 pair 6AWG, 1 Single Strand, Single-Mode Fiber with IP-25 to Elongated LC Clip, Various Lengths (xx ft)
Rev : P1 | Rev date : 22 Jan 2024
PRODUCT DESCRIPTION
RFS Technologies’ HYBRIFLEX Remote Radio Head (RRH) hybrid feeder cabling solution combines optical fiber and DC power for RRHs in a single lightweight cable, making it the world’s most innovative solution for RRH deployments. It was developed to reduce installation complexity and costs at Cellular sites. HYBRIFLEX allows mobile operators deploying an RRH architecture to standardize the RRH installation process. HYBRIFLEX combines optical fiber (multi-mode or single-mode) and power in a single cable. It may eliminate the need for junction boxes and can connect multiple RRHs with a single feeder. Standard CELLFLEX® accessories can be used with HYBRIFLEX cable.
FEATURES / BENEFITS
- TC type cable with outstanding bending characteristics - Minimizes installation time and enables mechanical protection and shielding
- Lightweight solution and compact design - Decreases tower loading
- Robust cabling - Eliminates need for expensive cable trays and ducts
- Installation of tight bundled fiber optic cable directly to the RRH - Reduces CAPEX and wind load by eliminating need for interconnection
- Optical fiber and power cables housed in single cable - Saves CAPEX by standardizing RRH cable installation and reducing installation requirements
- UL-Listed, flame-retardant jacket, UV protected assembles - Allows both indoor and outdoor applications
- 100% Factory tested - Online test results available

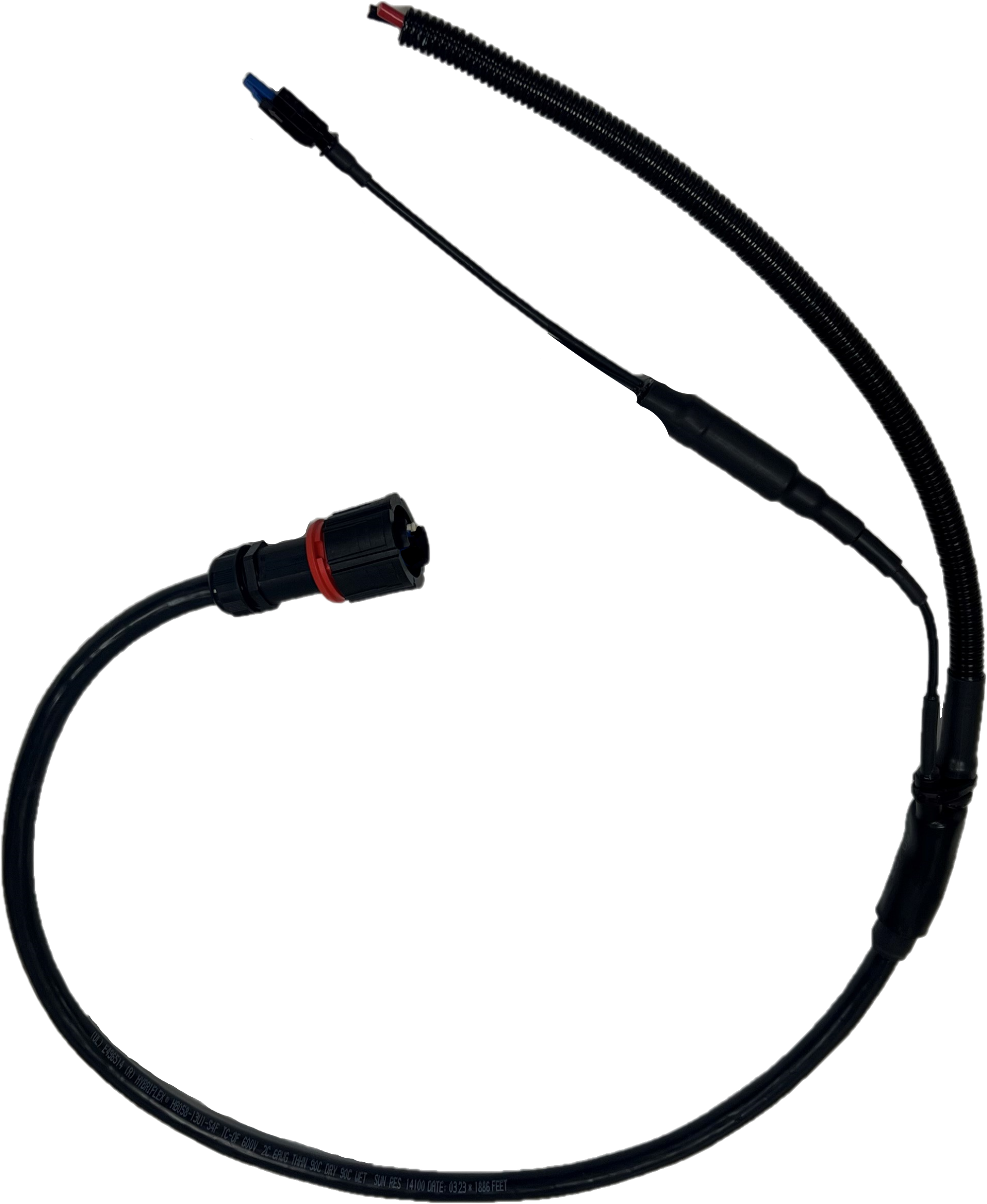

Product picture is coming soon
|
Structure
|
| Cable Type |
|
HYBRIFLEX®, Type TC |
| Fire Performance |
|
Flame Retardant |
| Size |
|
5/8" |
|
|
|---|
| Length | | 10 to 100ft, 10ft increments (3.05 to 30.5m, 3m increments) |
|
|
Mechanical Specifications
|
| Outer Diameter Nominal |
mm (in) |
17 (0.669) |
| Cable Weight |
kg/m (lb/ft) |
0.469 (0.316) |
| Minimum Bending Radius, Single Bend |
mm (in) |
102 (4) |
| Minimum Bending Radius, Multiple Bends |
mm (in) |
254 (10) |
| Recommended / Maximum Clamp Spacing |
m (ft) |
1 / 1.2 (3.25 / 4) |
|
|
Cable Jacket
|
| UV-Protection Individual and External Jacket |
|
Yes |
|
|
DC Power Cable Specifications
|
| Number of DC Pairs |
|
1 |
| Maximum DC-Resistance Power Cable |
Ω/km (Ω/kft) |
1.4 (0.42) |
| Cross Section of Power Cable |
mm² (AWG) |
13.3 (6) |
| DC Wire Jacket Material |
|
PVC/Nylon |
| DC Cable Single Bending Radius |
mm (in) |
83 (3.3) |
| DC Cable Diameter |
mm (in) |
6.45 (0.25) |
| DC Standards (Meets or Exceeds) |
|
For use in Type TC per UL 1277, PVC Nylon, RoHS/REACH Compliant |
| Break-out length (Top) |
mm (in) |
650 (26) |
| Break-out length (Bottom) |
mm (in) |
650 (26) |
| DC cable sealing method |
|
Semi-rigid, flame-retardant polyolefin, with hot melt adhesive |
|
F/O Cable Specifications |
|---|
| Number of Fiber Strands | | 1 |
|
| F/O Cable Type |
|
G657-A2 Single Mode, Bend Tolerant |
| Core/Clad |
µm |
9/125 |
| Single Bending Radius |
mm (in) |
55 (2.2) |
| F/O Standards (Meets or Exceeds) |
|
UL Listed Type OFNR (UL1666), RoHS Compliant |
| Optical Loss |
dB/Km |
0.5 @ 1310 nm
0.5 @ 1550 nm |
| FO Break-out Length (Top) |
mm (in) |
1219 (48) |
| FO Break-out Length (Bottom) |
mm (in) |
1219 (48) |
| Cable Sealing Method |
|
Semi-rigid flame-retardant polyolefin, with hot melt adhesive |
| Fiber Termination End 1 |
|
Simplex LC |
| Fiber Termination End 2 |
|
Simplex LC with Pull-tab |
|
|
Testing and Environmental
|
| Storage Temperature |
°C (°F) |
-40 to 70 (-40 to 158) |
| Operation Temperature |
°C (°F) |
-40 to 65 (-40 to 149) |
| Installation Temperature |
°C (°F) |
-20 to 65 (-4 to 149) |
| Jacket Specifications |
|
UL1277 Type TC, UL Listed |
|

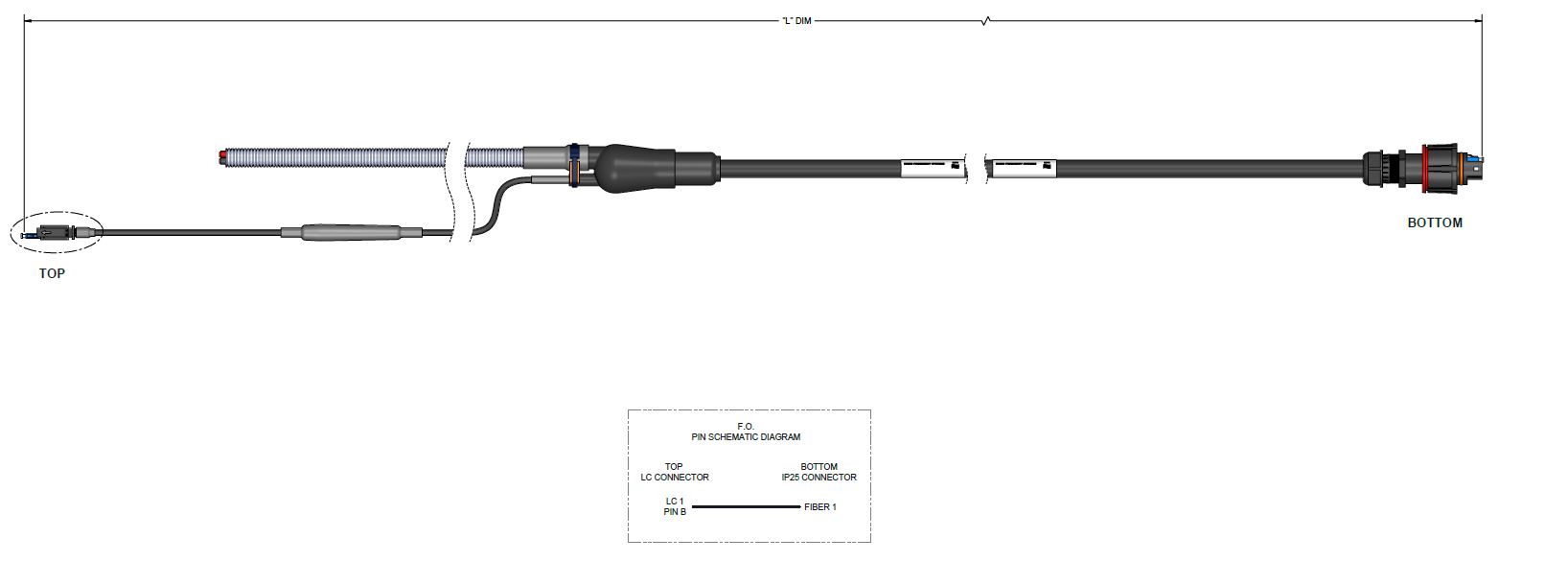

PRODUCT DRAWING
Product Drawing
Standard lengths: 10 to 100ft, 10ft increments. Customer lengths available upon request.
