158EIA-LCF114-062
1-5/8" EIA Connector for 1-1/4" Coaxial Cable, RAPID FIT™ Sealing compound
Rev : A | Rev date : 09 Nov 2016
Radio Frequency Systems’ line of high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up the attachment of connectors to CELLFLEX® coaxial cables. RFS Technologies connectors are fully tested for mechanical and electrical compliance specifications. They are available in all popular cable sizes in a variety of mating interfaces. To join two cables with EIA connectors, two identical socket connectors are installed on either end of the cables to be joined, and a coupling element is used to make the connection of the center conductor. The coupling element must be ordered. Connectors are available in sizes matching the nominal cable size. EIA connectors provide optimal power handling for the complete transmission line system.
FEATURES / BENEFITS
- Single-piece design for Fast and Easy Installation
Reliable and simple attachment avoids unnecessary connector adjustments and provides outstanding performance every time. Saves time and provides cost savings. - Robust Mechanical Design
Low and consistent intermodulation performance guarantees outstanding system sensitivity. - Excellent Electrical Performance
Consistent and repeatable low VSWR improves overall system performance and margin and reduces mismatch losses - Totally Waterproof according to IP 68
Assures safe, long term operation in the harshest of Environments.

158EIA-LCF114-062
General Specifications |
---|
Transmission Line Type | | Coaxial Cable with Copper Conductors (not for LITE Types with Aluminium Conductor) | Cable Size | | 1-1/4 | Cable Type | | Foam Dielectric | Model Series | | for all LCF, LCFS, UCF and RCF 114-50 A-Series | Connector Interface | | 1-5/8" EIA | Connector Type | | RAPID FIT™ | Sealing Method | | Sealing compound ¹ ) | Gender | | None |
|
Electrical Specifications |
---|
3rd Order IM Product @ 2x20 Watts | dBc | <-156 | Maximum Frequency | GHz | 3.3 | VSWR, Return Loss | VSWR (dB) | 0 < f < 1.0 GHz: 1.02 (40) 1.0 ≤ f < 2.2 GHz: 1.04 (34.1) 2.2 ≤ f < 2.7 GHz: 1.06 (30.7) 2.7 ≤ f < 3.3 GHz: 1.08 (28.3) |
|
Mechanical Specifications |
---|
Plating Outer/Inner | | Silver/Silver | Length | mm (in) | 95 (3.74) | Outer Diameter | mm (in) | 88.5 (3.5) | Inner Contact Attachment | | Spring Finger | Outer Contact Attachment | | Spring Finger |
|
Accessories |
---|
Wrench size front | mm (in) | Poly Hook Spanner Wrench | Wrench size rear | mm (in) | Poly Hook Spanner Wrench | Trimming Tool | | Universal Trimming Tool TRIM-Set-L114-D01 |
|
Testing and Environmental |
---|
Waterproof Level | | IP68 | Sealing Volume, cm3 (ounces) | cm³ (ounces) | 20 (0.68) |
|

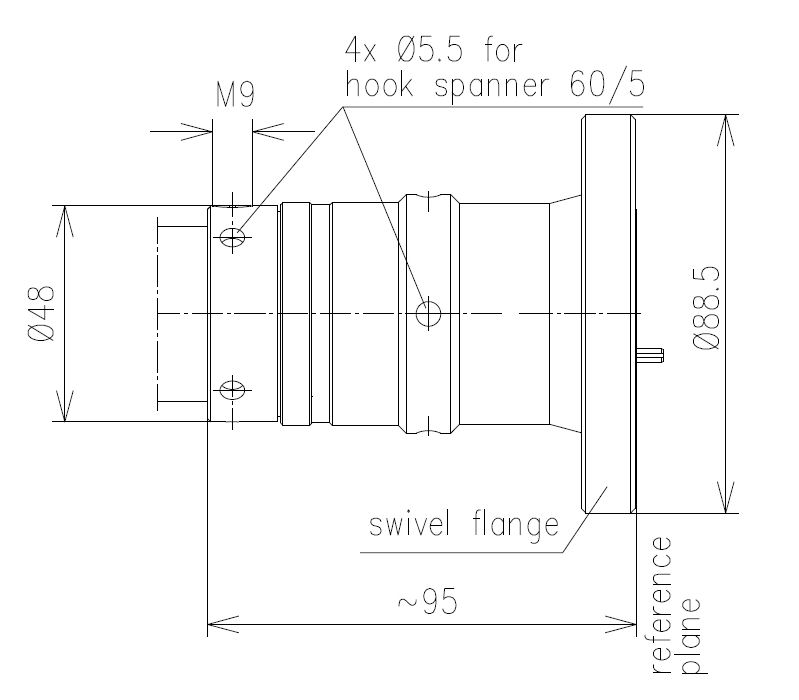

158EIA-LCF114-062 (Dimensions are in mm)
Notes
¹) The sealing compound must be ordered separately.
