78EIA-LCF78-062
7/8" EIA Connector for 7/8" Coaxial Cable, RAPID FIT™ Sealing compound
Rev : E | Rev date : 13 May 2016
Radio Frequency Systems’ line of high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up the attachment of connectors to CELLFLEX® coaxial cables. RFS Technologies connectors are fully tested for mechanical and electrical compliance specifications. They are available in all popular cable sizes in a variety of mating interfaces. To join two cables with EIA connectors, two identical socket connectors are installed on either end of the cables to be joined, and a coupling element is used to make the connection of the center conductor. The coupling element must be ordered separately with the exception of the S-Line male versions that have a captivated coupling element. Connectors are available in sizes matching the nominal cable size. EIA connectors provide optimal power handling for the complete transmission line system.
FEATURES / BENEFITS
- Single-piece design for Fast and Easy Installation
Reliable and simple attachment avoids unnecessary connector adjustments and provides outstanding performance every time. Saves time and provides cost savings. - Robust Mechanical Design
Low and consistent intermodulation performance guarantees outstanding system sensitivity. - Excellent Electrical Performance
Consistent and repeatable low VSWR improves overall system performance and margin and reduces mismatch losses - Totally Waterproof according to IP 68
Assures safe, long term operation in the harshest of environments.
RAPID FIT™ Connectors
General Specifications |
|---|
| Transmission Line Type | | Coaxial Cable | | Cable Size | | 7/8 | | Cable Type | | Foam Dielectric | | Model Series | | LCF78-50A-Series, RCF78-50A-Series | | Connector Interface | | 7/8" EIA | | Connector Type | | RAPID FIT™ | | Sealing Method | | Sealing compound ¹ ) | | Gender | | None |
|
Electrical Specifications |
|---|
| 3rd Order IM Product @ 2x20 Watts | dBc | <-156 | | Maximum Frequency | GHz | 3.7 | | VSWR, Return Loss | VSWR (dB) | 0 < f ≤ 1.0 GHz: 1.02 (40)
1.0 < f ≤ 2.7 GHz: 1.04 (34.1)
2.7 < f ≤ 3.7 GHz: 1.06 (30.7) |
|
Mechanical Specifications |
|---|
| Plating Outer/Inner | | Silver/Silver | | Length | mm (in) | 83 (3.3) | | Outer Diameter | mm (in) | 57.2 (2.3) | | Inner Contact Attachment | | Self Tapping | | Outer Contact Attachment | | Spring Finger |
|
Accessories |
|---|
| Wrench size front | mm (in) | 30 (1-3/16) | | Wrench size rear | mm (in) | 30 (1-3/16) | | Trimming Tool | | TRIM-Series-A |
|
Testing and Environmental |
|---|
| Waterproof Level | | IP68 | | Sealing Volume, cm3 (ounces) | cm³ (ounces) | 7 (0.26) |
|

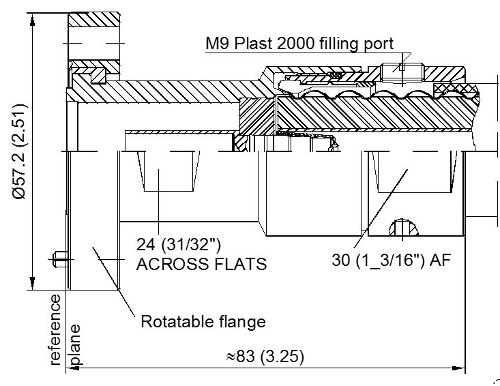

Dimensions in mm
Notes
¹) The sealing compound must be ordered separately.
