EB100-DV-1-B
90° E Plane Bend PDR/UDR100

Rev : B | Rev date : 28 Jan 2022
Rectangular Waveguide R 100 E-Bend 90 degree,
flanges PDR/UDR 100, f= 8.20-12.50 GHz,
VSWR max 1.06, A=75mm (2.9"),
gasket and screw kit enclosure
made of brass

FEATURES / BENEFITS

Waveguide installation
  • The rectangular waveguide component provides simple installation in particular difficult cases
  • It can be installed where less space is available
  • It provides outstanding electrical performance


Picture only for illustration

Technical features

Structure

Type of Rectangular Waveguide ComponentBend in E-Plane
Waveguide Size IEC (EIA)R100 (WR90)
Flange APDR100
Flange BUDR100
Flange FinishBrass un-plated
Package Quantity1

Electrical Specifications

Minimum Return Loss (max. VSWR) dB (VSWR)30.7 (1.06)

Mechanical Specifications

Bend/Twist degree90
Length mm (in)75 (2.9)

Material

MaterialBrass
ColorBlack

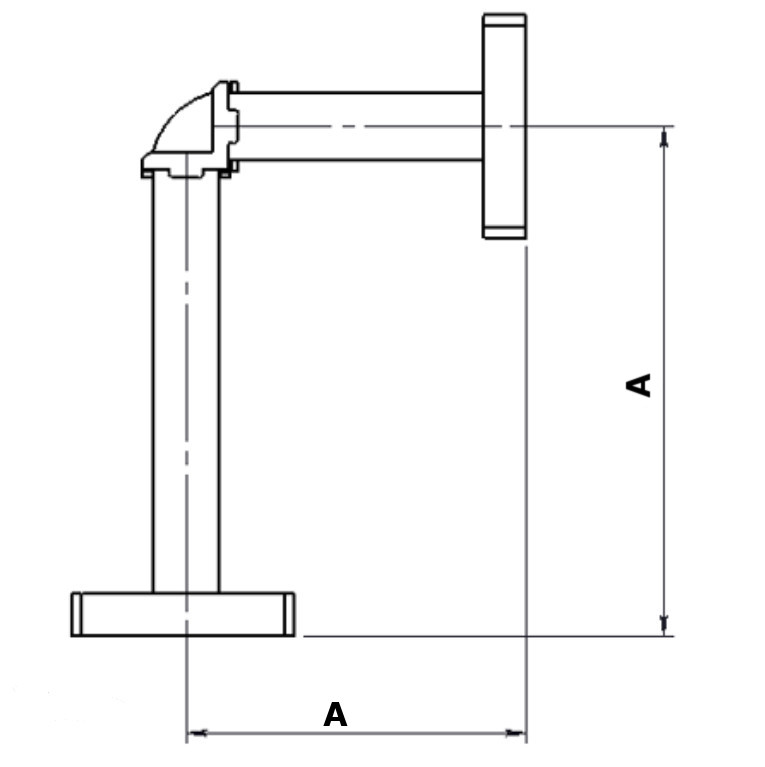

Design with casted bend


Design with accurate waveguide bend
