HA-DCTC-DB-10U3-XXX-CJ
Power Connect cable 10 mm² for connection of 3 RRUs
Rev : C | Rev date : 14 Feb 2023
RFS Technologies cabling solution for Remote Radio Unit (RRU) combines optical fiber and DC power in a single lightweight aluminum corrugated cable, making it the world’s most innovative solution for RRU deployments. It was developed to reduce installation complexity and cost at Cellular sites.
RFS Technologies cabling solutions allows mobile operators deploying RRU architecture to standardized installation process and eliminates the need for and the cost of cable grounding.
The RFS Technologies Power Connect cable HA-DCTC-DB-10U3-XXX consists of three pair DC wires protected by a CPR jacket.
FEATURES / BENEFITS
- Halogen-free and flame-retardant material (CPR)
- Comply with IEC 60228
- IP 68 Connector sealing
- IP67 Assembly sealing
Structure |
|---|
| Cable Type | | Power Cable Assembly | | Fire Performance | | CPR B2ca s1 d0, LSZH, for the cable |
|
Mechanical Specifications |
|---|
| Outer Diameter Nominal | mm (in) | 16.85 (0.66) | | Cable Weight | kg/m (lb/ft) | 0.7 (0.47) | | Minimum Bending Radius, (Operating) | mm (in) | 120 (4.72) | | Minimum Bending Radius, (Installation) | mm (in) | 254 (10) | | Recommended / Maximum Clamp Spacing | m (ft) | 0.8 / 1 (2 / 3.25) |
|
DC Power Cable Specifications |
|---|
| Number of DC Pairs | | 3 | | Maximum DC-Resistance Power Cable | Ω/km (Ω/kft) | 1.91 (0.58) | | Cross Section of Power Cable | mm² (AWG) | 10 (7) | | DC Wire Jacket Material | | UV stable Flame retardant | | DC Wire Jacket Thickness | mm (in) | 0.45 (0.017) | | DC Cable Single Bending Radius | mm (in) | 51 (2.01) | | DC Cable Diameter | mm (in) | 5.1 (0.2) | | DC Standards (Meets or Exceeds) | | IEC 60228 |
|
Cable Jacket |
|---|
| UV-Protection Individual and External Jacket | | Yes | | Jacket Material | | CPR Flame Retardant, LSZH |
|
F/O Cable Specifications |
|---|
| F/O Cable Type | | HYBRIFLEX™ Power Cable Assembly |
|
Testing and Environmental |
|---|
| Storage Temperature | °C (°F) | -40 to 85 (-40 to 185 ) | | Operation Temperature | °C (°F) | -40 to 85 (-40 to 185 ) | | Installation Temperature | °C (°F) | -20 to 50 (-4 to 122 ) |
|
Additional Assemblies |
|---|
| Length | Model Name | | 10 m | HA-DCTC-DB-10U3-010-CJ | | 15 m | HA-DCTC-DB-10U3-015-CJ | | 20 m | HA-DCTC-DB-10U3-020-CJ | | 25 m | HA-DCTC-DB-10U3-025-CJ | | 30 m | HA-DCTC-DB-10U3-030-CJ | | 35 m | HA-DCTC-DB-10U3-035-CJ | | 40 m | HA-DCTC-DB-10U3-040-CJ | | 50 m | HA-DCTC-DB-10U3-050-CJ | | 60 m | HA-DCTC-DB-10U3-060-CJ | | 70 m | HA-DCTC-DB-10U3-070-CJ |
|

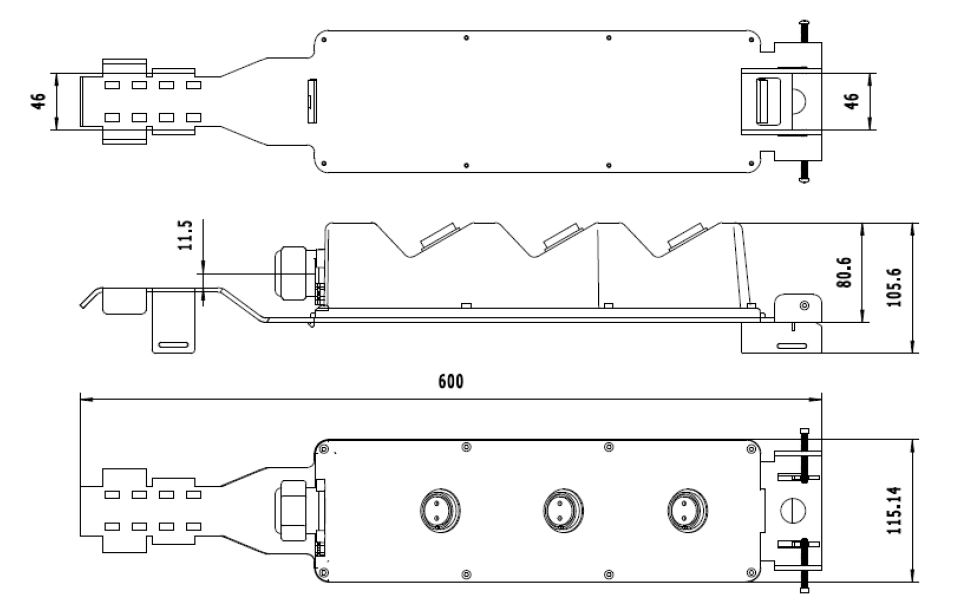

Compact Distributor Dimensions
Bottom Section
