HA-FOTF-VL-XXSM-XXX-01
HYBRIFLEX® Fiber Trunk Cable, Single-Mode
Rev : A | Rev date : 18 Feb 2022
RFS Technologies HYBRIFLEX ™ cabling solution for Remote Radio Head (RRU) combines optical fiber and DC power for RRUs in a single cable, making it the world’s most innovative solution for RRH deployments. It was developed to reduce installation complexity and cost at Cellular sites and is available with and without armor.
The HYBRIFLEX™ hybrid cable family is now supplemented by two new members: The Fiber Optic trunk cable and the DC trunk cable available in a large variety of fiber counts, DC counts and DC cross sections.
The armored F/O trunk cable is part of the cabling solution for RRU’s meant to build the F/O connection from the bottom patch panel to the Distribution Box near the RRU. It consists of a jacketed part of length XX, a breakout part to the Distribution Box and a breakout part to the BBU side. The F/O trunk cables can be ordered from 10 m up to 200 m in increments of 10 m jacketed length.
FEATURES / BENEFITS
- Outdoor LSZH jacket Ensure long-lasting cable protection
- High class F/O performance

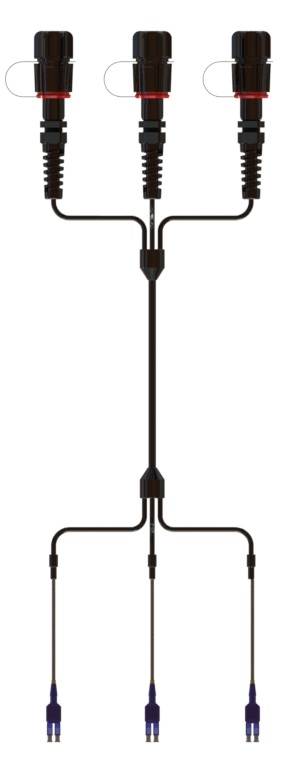

Example for 3 Pairs
Structure |
|---|
| Cable Type | | Fiber Trunk |
|
Mechanical Specifications |
|---|
| Outer Diameter Nominal | mm (in) | 7 (0.276) | | Minimum Bending Radius, (Operating) | mm (in) | 70 (3) | | Minimum Bending Radius, (Installation) | mm (in) | 125 (5) |
|
Cable Jacket |
|---|
| UV-Protection Individual and External Jacket | | Yes | | Jacket Material | | Flame retardant, LSZH |
|
F/O Cable Specifications |
|---|
| F/O Cable Type | | Tight Buffer, Single Mode | | Core/Clad | µm | 9 /125 | | Optical Loss | dB/Km | 1 @ 1310 nm
1 @ 1550 nm | | Fiber Termination End 1 | | ODVA Connector incl. ODVA inline adapter pre-installed (see picture below) | | Fiber Termination End 2 | | LC Duplex |
|
Testing and Environmental |
|---|
| Storage Temperature | °C (°F) | -40 to 70 (-40 to 158 ) | | Operation Temperature | °C (°F) | -40 to 65 (-40 to 149 ) | | Installation Temperature | °C (°F) | -20 to 65 (-4 to 149 ) |
|
Additional Assemblies |
|---|
| Length | 3 pairs Fiber | 6 pairs Fiber | 12 pairs Fiber | 24 pairs Fiber | | 10 m | HA-FOTF-VL-03SM-010-01 | HA-FOTF-VL-06SM-010-01 | HA-FOTF-VL-12SM-010-01 | HA-FOTF-VL-24SM-010-01 | | 20 m | HA-FOTF-VL-03SM-020-01 | HA-FOTF-VL-06SM-020-01 | HA-FOTF-VL-12SM-020-01 | HA-FOTF-VL-24SM-020-01 | | 30 m | HA-FOTF-VL-03SM-030-01 | HA-FOTF-VL-06SM-030-01 | HA-FOTF-VL-12SM-030-01 | HA-FOTF-VL-24SM-030-01 | | 40 m | HA-FOTF-VL-03SM-040-01 | HA-FOTF-VL-06SM-040-01 | HA-FOTF-VL-12SM-040-01 | HA-FOTF-VL-24SM-040-01 | | 50 m | HA-FOTF-VL-03SM-050-01 | HA-FOTF-VL-06SM-050-01 | HA-FOTF-VL-12SM-050-01 | HA-FOTF-VL-24SM-050-01 | | 60 m | HA-FOTF-VL-03SM-060-01 | HA-FOTF-VL-06SM-060-01 | HA-FOTF-VL-12SM-060-01 | HA-FOTF-VL-24SM-060-01 | | 70 m | HA-FOTF-VL-03SM-070-01 | HA-FOTF-VL-06SM-070-01 | HA-FOTF-VL-12SM-070-01 | HA-FOTF-VL-24SM-070-01 | | 80 m | HA-FOTF-VL-03SM-080-01 | HA-FOTF-VL-06SM-080-01 | HA-FOTF-VL-12SM-080-01 | HA-FOTF-VL-24SM-080-01 | | 90 m | HA-FOTF-VL-03SM-090-01 | HA-FOTF-VL-06SM-090-01 | HA-FOTF-VL-12SM-090-01 | HA-FOTF-VL-24SM-090-01 | | 100 m | HA-FOTF-VL-03SM-100-01 | HA-FOTF-VL-06SM-100-01 | HA-FOTF-VL-12SM-100-01 | HA-FOTF-VL-24SM-100-01 | | 110 m | HA-FOTF-VL-03SM-110-01 | HA-FOTF-VL-06SM-110-01 | HA-FOTF-VL-12SM-110-01 | HA-FOTF-VL-24SM-110-01 | | 120 m | HA-FOTF-VL-03SM-120-01 | HA-FOTF-VL-06SM-120-01 | HA-FOTF-VL-12SM-120-01 | HA-FOTF-VL-24SM-120-01 | | 130 m | HA-FOTF-VL-03SM-130-01 | HA-FOTF-VL-06SM-130-01 | HA-FOTF-VL-12SM-130-01 | HA-FOTF-VL-24SM-130-01 | | 140 m | HA-FOTF-VL-03SM-140-01 | HA-FOTF-VL-06SM-140-01 | HA-FOTF-VL-12SM-140-01 | HA-FOTF-VL-24SM-140-01 | | 150 m | HA-FOTF-VL-03SM-150-01 | HA-FOTF-VL-06SM-150-01 | HA-FOTF-VL-12SM-150-01 | HA-FOTF-VL-24SM-150-01 | | 160 m | HA-FOTF-VL-03SM-160-01 | HA-FOTF-VL-06SM-160-01 | HA-FOTF-VL-12SM-160-01 | HA-FOTF-VL-24SM-160-01 | | 170 m | HA-FOTF-VL-03SM-170-01 | HA-FOTF-VL-06SM-170-01 | HA-FOTF-VL-12SM-170-01 | HA-FOTF-VL-24SM-170-01 | | 180 m | HA-FOTF-VL-03SM-180-01 | HA-FOTF-VL-06SM-180-01 | HA-FOTF-VL-12SM-180-01 | HA-FOTF-VL-24SM-180-01 | | 190 m | HA-FOTF-VL-03SM-190-01 | HA-FOTF-VL-06SM-190-01 | HA-FOTF-VL-12SM-190-01 | HA-FOTF-VL-24SM-190-01 | | 200 m | HA-FOTF-VL-03SM-200-01 | HA-FOTF-VL-06SM-200-01 | HA-FOTF-VL-12SM-200-01 | HA-FOTF-VL-24SM-200-01 |
|

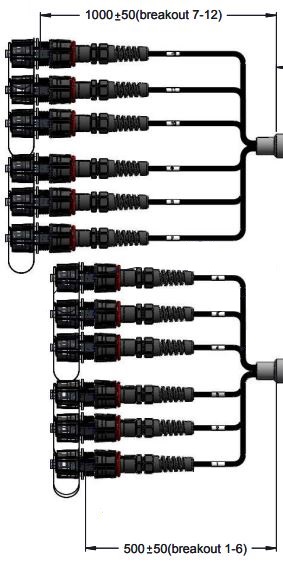

Top Breakout 12 pairs

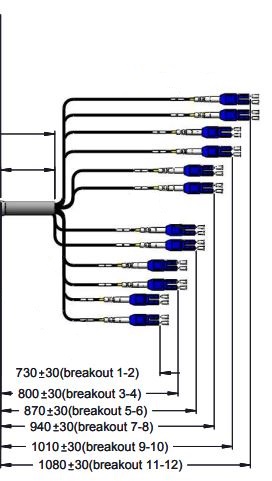

Bottom Breakout 12 pairs
Inline Adapter
