318EIA-HCA300-019
3-1/8" EIA Connector for 3" Coaxial Cable, Gas stop/ Gas pass,O-Ring Sealing

Distributor Stock
RF Specialties of PA 10 Buy
Rev : 1 | Rev date : 04 Oct 2023
These high-performance coaxial cable connectors are characterized by excellent gas tightness and extremely low losses. The connectors can be installed with basic hand tools. Tab flange of outer connection and use of o-ring sealing simplifies installation of the connector.
The connectors are fully tested for mechanical and electrical compliance to specifications.
They have excellent electrical values and provide outstanding performance for the most demanding applications. The design provides maximum sealing integrity and gas tightness.

FEATURES / BENEFITS

  • Easy installation utilizing only basic hand tools.
  • Tab flare of outer contact attachment means quick and simple installation.
  • No need for sealing compound. The connector is ready for pressurization immediately after installed to the cable.
  • Excellent gas tightness. Overpressure for increased voltage handling is maintained throughout the system.
  • Outstanding VSWR performance improves overall system performance.
  • Totally waterproof, assures safe, long term operation in the harshest of environments.
  • RoHS (EU) and CRoHS (China) compliant, can be used on a global basis.


318EIA Connector for HCA300 Cable

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size3"
Cable TypeAir Dielectric
Model SeriesHCA300-50 Series
Connector Interface3-1/8" EIA
Connector Type
Gas stop /Gas pass - See Note 1)
Sealing Method
O-ring seal
GenderFemale - See Note 2)

Electrical Specifications

Insertion loss dB

< 0.05dB

VSWR, Return LossVSWR (dB)0 <f ≤ 860 MHz: 1.02 (40)
860 MHz <f ≤ 1.5 GHz: 1.05 (32)

Mechanical Specifications

Plating Outer/InnerTri Plate/Silver
Length mm (in)164 (6.45)
Outer Diameter mm (in)136 (5.35)
Outer Contact AttachmentTab Flare

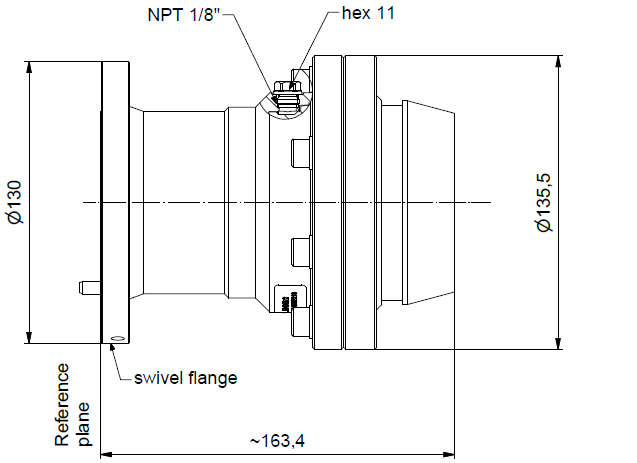

318EIA-HCA300-019 connector, dimensions in mm

External Document Links

Notes

1) The connector is converted to gas pass by drilling through the pilot hole in the insulator.
2) Connector model -019 does not include the inner connector and flange hardware which is necessary when mating two EIA connectors.
     Model name with -019KT suffix denotes a connector kit which consists of a connector, an inner connector and a set of flange hardware.
3)  Model name with -019KT suffix denotes a re-use kit for connector which includes 1x O rign for back nut, 1x gasket, 1x stub, 1x clamping ring, 1x vaseline package and 1x manul.
