I-ATP5-380/2700
Indoor Panel Antenna 380-2700 MHz

Rev : A | Rev date : 19 Apr 2018
The panel antenna I-ATP5-380/2700 is designed for broadband in-building DAS applications supporting all kind of mission critical and 4G commercial wireless communication networks.
The antenna combines an aesthetical design with superior electrical characteristics notably a PIM optimized design to minimize network interferences.
The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.

FEATURES / BENEFITS

  • Wideband panel antenna supporting all wireless services in the frequency bands 380-530 / 698-960/1710-2700MHz
  • Typically used in indoor distribution of LTE services in combination with mission critical communication systems
  • PIM optimized antenna design (140dBc @2x20W)
  • Aesthetical visual appearance, compact and lightweight
  • Pigtail with N female connector


I-ATP5-380/2700

Technical features

General Specifications

Product TypePanel Antenna
Techn. ApplicationIndoor

Mechanical Specifications

Number of Input Ports1
ConnectorsN female
Connector Cable mm (in)300 (11.81)
Mounting Hardware includedWall installation
Height (Less Connectors) mm (in)65 (2.56)
Width (Less Connectors) mm (in)190 (7.48)
Length (Less Connectors) mm (in)308 (12.12)
Weight kg (lb)0.6 (1.32)

Electrical Specifications

Frequency MHz 380 - 530 698 - 960 1710 - 2170
Gain, typ. dBi 4.0 ± 1.0 5.0 ± 1.0 7.0 ± 1.0
max. VSWR 2.5 2.0 2.0

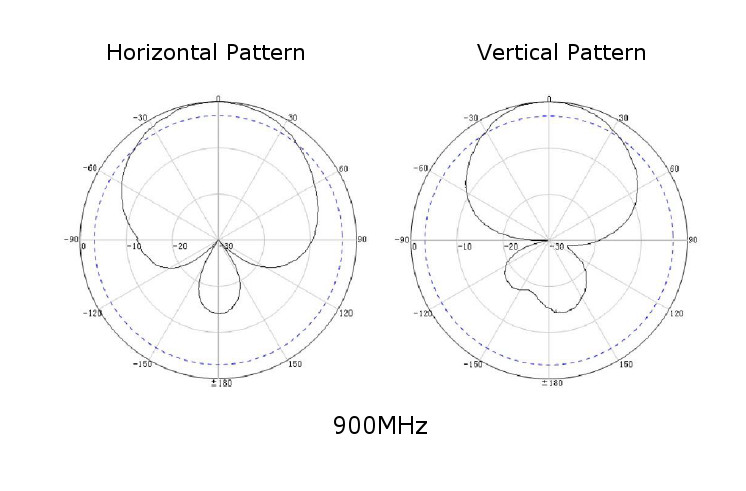

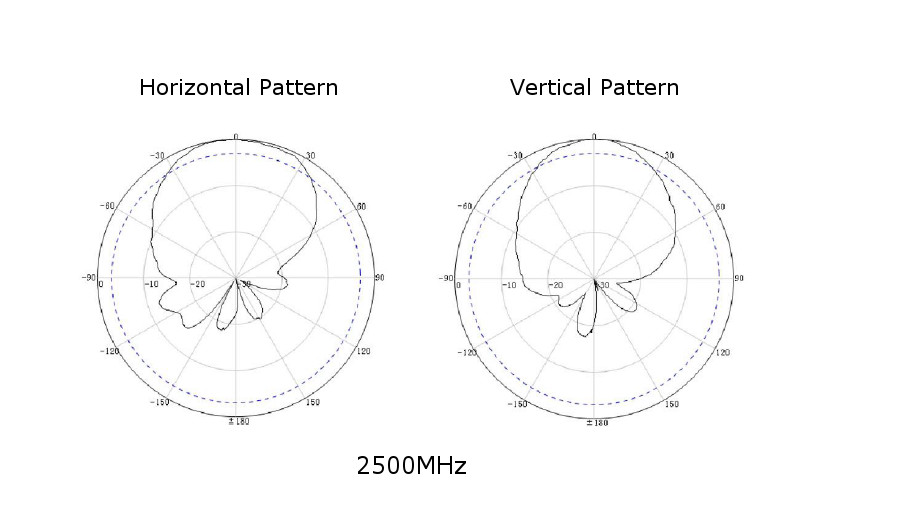

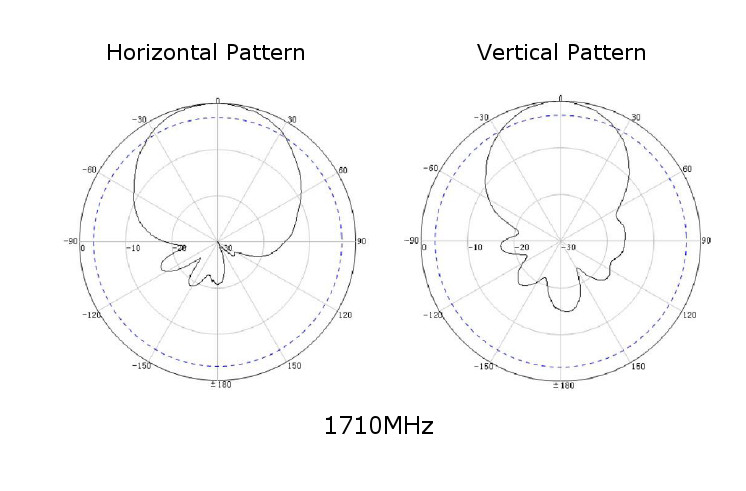

Beam width, Vertical, typ. ° 50 65 65
Beam width, Horizontal, typ. ° 150 90 75
Intermodulation (IM3)
(2x20W)
dBc / 140dBc 140dBc
Impedance, OhmΩ50
PolarizationVertical
Total Input Power max. W50

Material

Radome MaterialABS
Radome ColorWhite (RAL9003)

Temperature Specifications

Operation Temperature °C (°F)-40 to 55 (-40 to 131 )

Testing and Environmental

Environmental ClassIndoor
