I-ATP5-698/3800
Indoor Panel Antenna 698-3800MHz
Rev : A | Rev date : 09 May 2019
The panel antenna I-ATP5-43-698/3800 is designed for broadband in-building DAS applications supporting all kind of safety as well as 4G and 5G commercial wireless communication networks.
The antenna combines an aesthetical design with superior electrical characteristics notably a PIM optimized design to minimize network interferences. The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.
FEATURES / BENEFITS
- Wideband omni antenna, supporting all wireless services in the frequency bands 698-960/1427-2700MHz/3400-3800MHz
- Typically used in indoor distribution of 2G/3G/4G/5G wireless services in all standardized frequency bands
- PIM optimized antenna design (-153dBc @2x20W)
- Aesthetical visual appearance, compact and light weight
- Low return loss, stable performance
- Pigtail with N female connector
- Ceiling mounting
I-ATP5-698/3800
General Specifications |
|---|
| Product Type | | Panel Antenna | | Techn. Application | | Indoor |
|
Mechanical Specifications |
|---|
| Number of Input Ports | | 1 | | Connectors | | N female | | Connector Cable | mm (in) | 300 (11.8) | | Mounting Hardware included | | Wall bracket, screws | | Height (Less Connectors) | mm (in) | 180 (7.09) | | Width (Less Connectors) | mm (in) | 170 (6.7) | | Length (Less Connectors) | mm (in) | 60 (2.36) | | Weight | kg (lb) | 0.4 (0.88) |
|
Electrical Specifications |
|---|
| Frequency |
MHz |
698 - 806 |
806 - 960 |
1427 - 1710 |
1710-2700 |
3400-4000 |
| Gain, typ. |
dBi |
5.0 ± 1.0 |
6.0 ± 1.0 |
7.0 ± 1.0 |
7.0 ± 1.0 |
5.5 ± 0.5 |
| max. VSWR |
|
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
| Beam width, Vertical, typ. |
° |
73 |
70 |
60 |
60 |
30 |

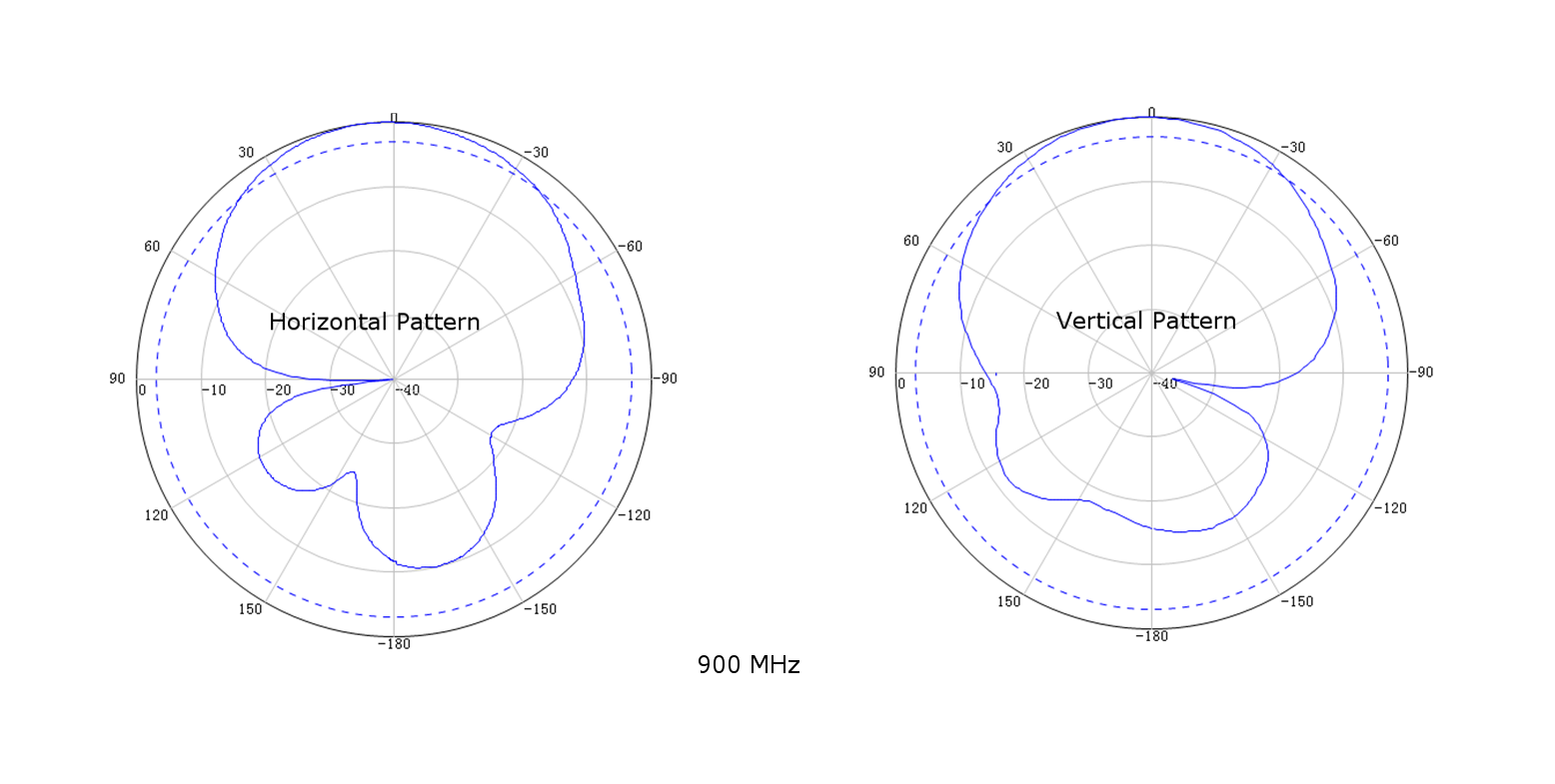

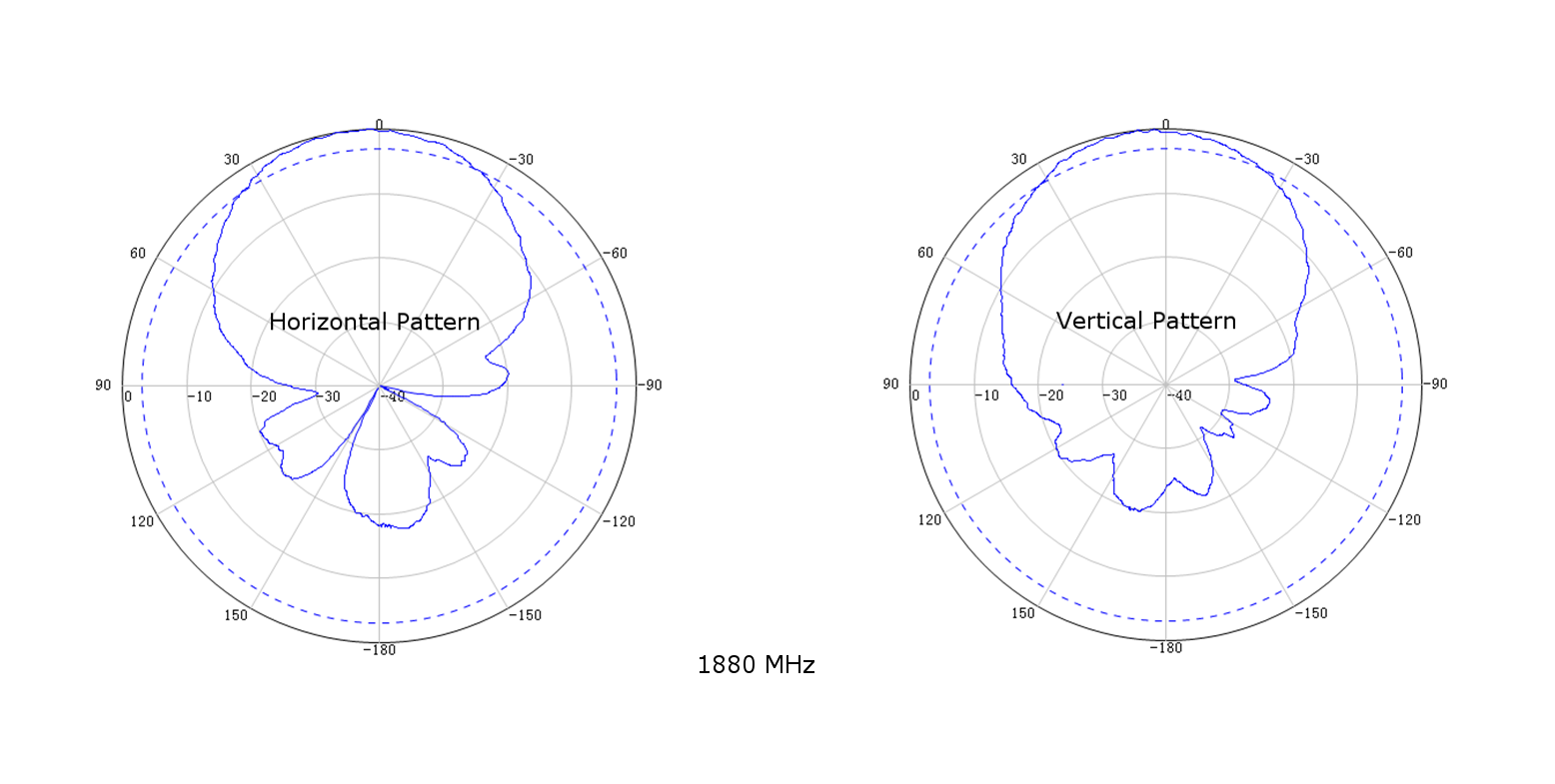

| Beam width, Horizontal, typ. |
° |
80 |
80 |
65 |
60 |
55 |
| Front-To-Back-Ratio |
dB |
5 |
8 |
10 |
12 |
10 |
| Impedance, Ohm | Ω | 50 | | Polarization | | Vertical | | Intermodulation (IM3) | | -153dBc (2 x 43dBm) | | Total Input Power max. | W | 50 |
|
Material |
|---|
| Radome Material | | ABS | | Radome Color | | White (RAL9003) |
|
Temperature Specifications |
|---|
| Operation Temperature | °C (°F) | -40 to 55 (-40 to 131 ) |
|
Testing and Environmental |
|---|
| Environmental Class | | Indoor |
|
