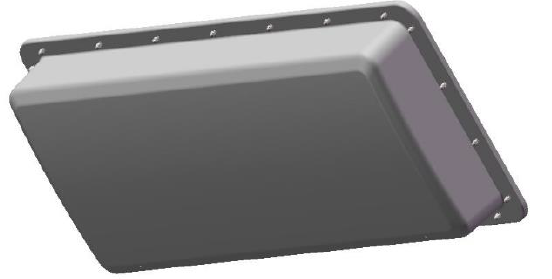

I-ATPS6-43-698/3800M-2260
High Capacity Venue Panel MIMO Antenna 698-3800 MHz
Rev : A | Rev date : 09 Jun 2021
The high capacity venue MIMO antenna I-ATPS6-43-698/3800M-2260 is designed for broadband DAS applications supporting all kind of safety as well as 4G and 5G commercial wireless communication networks.
The antenna is specifically optimized for stadium applications to allow for capacity optimized desings with a minimum of interferences between individual sectors.
The antenna combines an aesthetical design with superior electrical characteristics notably a PIM optimized design to minimize network interferences. The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.
FEATURES / BENEFITS
-
Wideband panel antenna supporting the frequency bands 698-960MHz /1695-2700MHz / 3300-3800MHz
- Ideally suited for high capacity venues as stadiums
-
Indoor distribution of 2G/3G/4G/5G wireless networks ideally combined with multi-band MIMO
- High level of side lobe suppression minimizing interferences between sectors
- PIM optimized antenna design (-153dBc @2x20W)
- Low sidelobes
- Consisten pattern over the full spectrum
-
Aesthetical visual appearance, compact and light weight
-
4.3-10 female connector
I-ATPS6-43-698/3800M-2260
General Specifications |
|---|
| Product Type | | High Capacity Venue MIMO Antenna | | Techn. Application | | Indoor |
|
Mechanical Specifications |
|---|
| Number of Input Ports | | 2 | | Connectors | | 4.3-10 female | | Mounting Hardware included | | Mounting Bracket | | Height (Less Connectors) | mm (in) | 120 (4.7) | | Width (Less Connectors) | mm (in) | 425 (16.7) | | Length (Less Connectors) | mm (in) | 970 (38.2) | | Weight | kg (lb) | 10.5 (23) |
|
Electrical Specifications |
|---|
| Frequency |
MHz |
698 - 800 |
800 - 960 |
1695 - 2180 |
2180 - 2700 |
3300 - 3800 |
| Gain, typ. |
dBi |
11.5 |
12.5 |
12.0 |
13.0 |
13.0 |
| VSWR / Return Loss |
max |
1.7 / 11.7 |
1.7 / 11.7 |
1.7 / 11.7 |
1.7 / 11.7 |
1.7 / 11.7 |
| Beamwidth, Vertical, typ. |
° |
68 |
65 |
68 |
64 |
65 |
| Beamwidth, Horizontal, typ. |
° |
25.5 |
22 |
24 |
20 |
21 |
| Isolation |
dB |
24 |
24 |
23 |
23 |
24 |
| Front-to-Back Ratio |
dB |
25 |
25 |
28 |
28 |
28 |
| Horizontal sidelobe |
dB |
16 |
16 |
16 |
16 |
16 |
| Maximum Input Power |
W |
200 |
200 |
200 |
200 |
100 |
| Impedance, Ohm | Ω | 50 | | Polarization | | +/- 45° | | Intermodulation (IM3) | | - 153dBc with 2 x 20W |
|
Material |
|---|
| Radome Material | | ABS, ASA, UV resistant | | Radome Color | | White |
|
Temperature Specifications |
|---|
| Operation Temperature | °C (°F) | -40 to 70 (-40 to 158 ) |
|
Testing and Environmental |
|---|
| Environmental Class | | IP65 |
|
