PDS4-43-694/3800
4 Way Power Divider
Rev : B | Rev date : 08 Apr 2020
RFS Technologies PDS*-43 series Power Splitters have been designed for a variety of wireless applications in the frequency band from 694 to 3800MHz. The units evenly split and distribute wireless signals with minimal reflections or loss. The broad frequency range and outstanding PIM rating is ideally suited for multi-band distributed antenna systems or in combination with RADIAFLEX® radiating cables.
FEATURES / BENEFITS
- 4.3-10-female interfaces
- PIM optimized design (160dBc @ 2x43dBm)
- Ideal for all kind of DAS applications
- Low insertion loss
- High power handling
- Small size, Low weight
Structure |
|---|
| Product Type | | Power Divider | | Techn. Application | | Indoor | | Number of Input Ports | | 1 | | Number of Output Ports | | 4 | | Connectors | | 4.3-10 female |
|
Electrical Specifications |
|---|
| Frequency Range | MHz | 694 - 3800 | | Impedance | Ohm | 50 | | Max. VSWR / Return Loss, dB | VSWR/dB | 1.3 / 17.7 | | Split Loss | dB | 6.2 | | Max Rippel | dB | 0.4 | | Intermodulation (IM3) | | -160dBc (2x43dBm) | | Total Input Power | W | 400 |
|
Temperature Specifications |
|---|
| Temperature Range | °C (°F) | -25 to +65 (-13 to +149) |
|
Mechanical Specifications |
|---|

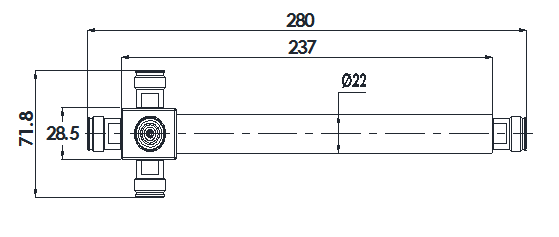

| Height (Less Connectors) | mm (in) | 50 (1.97) | | Width (Less Connectors) | mm (in) | 71.8 (2.83) | | Length (Less Connectors) | mm (in) | 280 (11) |
|
Testing and Environmental |
|---|
| Environmental Class | | IP65 |
|
Notes
- Mounting Hardware not included
