TPS15-43-694/3800
Unequal Divider/Tapper
Rev : B | Rev date : 27 May 2020
RFS Technologies TPS* Tapper product family has been designed to support a variety of wireless applications in the frequency band from 694 to 3800MHz. The units couple off a defined fraction of a RF signal from typically 3 to 30 dB with minimal reflections or loss. The broad frequency range is ideally suited for 3G / 4G / 5G multi-band distributed antenna systems or in combination with RADIAFLEX® radiating cables. Notably, these products feature a low level of network interferences due to their PIM optimized desing.
FEATURES / BENEFITS
- Split ratio 30:1 / 15dB
- 4.3-10-female interfaces
- PIM optimized design (160dBc @2x43dBm)
- Low insertion loss
- High power handling
- Small size, Low weight

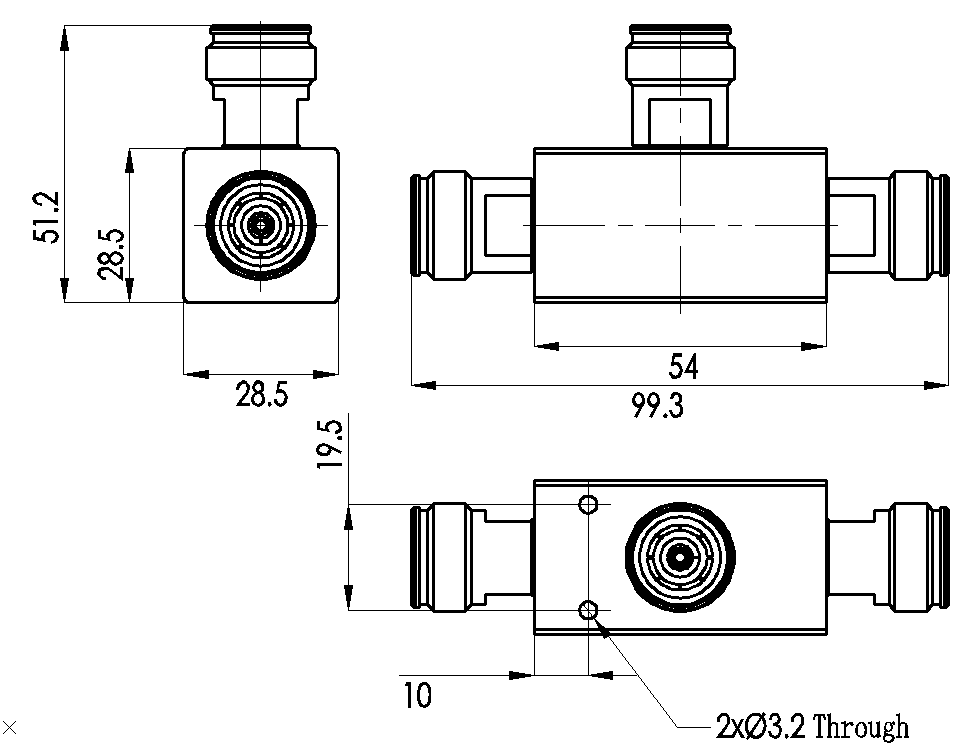

TPS15-43-694/3800 (similar product illustration)
Structure |
|---|
| Product Type | | Unequal Divider/Tapper | | Techn. Application | | Indoor | | Number of Input Ports | | 1 | | Number of Output Ports | | 2 | | Connector Type | | 4.3-10 female |
|
Electrical Specifications |
|---|
| Frequency Range | MHz | 694 - 3800 | | Impedance | Ohm | 50 | | Insertion Loss max. | dB | 0.2 | | Max. VSWR / Return Loss | VSWR/dB | 1.30/17.7 (1.3) | | Intermodulation (IM3) | | 160dBc (2x43dBm) | | Coupling Value | dB | 15.3 | | Coupling Flatness max. | dB | +2.0 / -2.0 | | Power Ratio - between Outputs | dB | 30:1 / 15dB | | Total Input Power | W | 400 |
|
Temperature Specifications |
|---|
| Temperature Range | °C (°F) | -25 to +65 (-13 to +149) |
|
Mechanical Specifications |
|---|
| Height | mm (in) | 49.7 (1.96) | | Width | mm (in) | 19.5 (0.77) | | Length | mm (in) | 84.3 (3.32) |
|
Testing and Environmental |
|---|
| Environmental Class | | IP65 |
|
