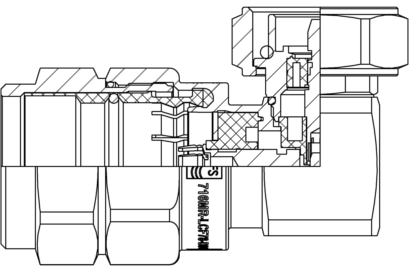

716MR-LCF78-D01
7-16 DIN Male Connector for 7/8" Coaxial Cable, OMNI FIT™ Premium,
Right Angle, O-Ring and compression sealing

Distributor	Stock
RF Specialties of PA	35	Buy

Rev : E | Rev date : 10 Jan 2014

Radio Frequency Systems line of high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up the attachment of connectors to CELLFLEX® coaxial cables.
All RFS Technologies connectors are fully tested for mechanical and electrical compliance to industry specifications.

The N connector meets all technical requirements and covers high frequencies as well as legacy applications. Sealing against outer conductor and jacket by means of O-Ring and 360� compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.;

FEATURES / BENEFITS

Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
Two-piece design i.e. visual inspection of interlocking leads to improved installation security
OMNI FIT™ concept i.e. streamlined order management and reduced stock level
Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
Unique NiTin plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis

OMNI FIT™ Premium Connectors

Technical features

General Specifications
Transmission Line Type		Coaxial Cable
Cable Size		7/8
Cable Type		Foam Dielectric
Model Series		LCF78-50 Series, RCF78-50 Series
Connector Interface		7-16 DIN
Connector Type		OMNI FIT™ PREMIUM Right Angle
Sealing Method		O-Ring + 360° Compression
Gender		Male

Electrical Specifications
Nominal Impedance, ohms	Ohm	50
3rd Order IM Product @ 2x20 Watts	dBc	-163 ; typical -167
Maximum Frequency	GHz	3.7
VSWR, Return Loss	VSWR (dB)	0 < f ≤ 1.0 GHz: 1.02 (40.1) 1.0 < f ≤ 2.7 GHz: 1.04 (34.2) 2.7 < f ≤ 3.7 GHz: 1.08 (28.3)

Mechanical Specifications
Plating Outer/Inner		NiTin/Silver
Length	mm (in)	82.85 (3.26)
Outer Diameter	mm (in)	52.4 (2.06)
Inner Contact Attachment		Spring Finger
Outer Contact Attachment		360° clamping

Accessories
Wrench size front	mm (in)	36 (1-7/16)
Wrench size rear	mm (in)	36 (1-7/16)
Trimming Tool		TRIM-78-L TRIM-SET-L78-D01 TRIM-LCF78-D01-A

Testing and Environmental
Waterproof Level		IP68
