RSB-315

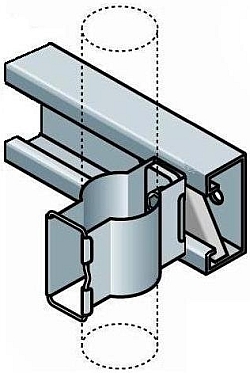

RSB clamping plate for anchor bar including reiforcement plate and screw

Rev : C | Rev date : 17 Feb 2023

The set consists of a clamping plate made of aluminium including stainless steel reiforcement plate and stainless steel screw M6

FEATURES / BENEFITS


Technical features

General Specifications

Product LineCoaxial Cable Accessories
Elliptical Waveguide Accessories
Product TypeHanger
Hanger TypeRSB clamping plate for anchor bar
Installation Hardware TypeAnchor bar with slotwidth 18 to 22 mm (0.7 to 0.9 inch)
Cable TypeCoaxial Foam Dielectric

Mechanical Specifications

Number of Cable / Waveguide Runs1
Material

Clamping plate: Aluminium
Reinforcement plate: Stainless steel
Screw: Stainless steel

Temperature Specifications

Installation Temperature °C (°F)-50 to 85 (-58 to 185 )
Operation Temperature °C (°F)-50 to 85 (-58 to 185 )
Storage Temperature °C (°F)-50 to 85 (-58 to 185 )

Packaging Information

Package Quantity10

External Document Links

Notes

Only usable in combination with RSB-12, RSB-78, RSB-114 & RSB-158.
