716M-SCF12-D01

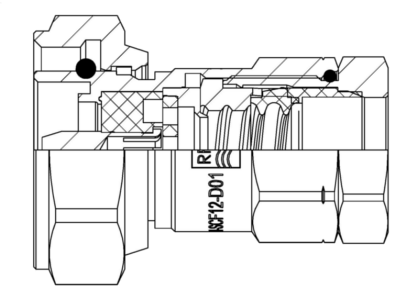

7-16 DIN Male Connector for 1/2" Coaxial Cable, OMNI FIT™ Premium,
Straight, threaded gasket and 360° compression sealing

Distributor Stock
RF Specialties of PA 34 Buy
Talley 20 Buy
Rev : E | Rev date : 08 Feb 2012
OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment.
All RFS Technologies connectors are fully tested for mechanical and electrical compliance to industry specifications.
The 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions. Sealing against outer conductor and jacket by means of threaded gasket and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.

FEATURES / BENEFITS

  • Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
  • Two-piece design i.e. visual inspection of interlocking leads to improved installation security
  • OMNI FIT™ concept i.e. streamlined order management and reduced stock level
  • Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
  • Unique NiTin plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
  • Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
  • RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis


OMNI FIT™ Premium Connectors

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size1/2
Cable TypeFoam Dielectric Superflexible
Model SeriesSCF12-50 Series
Connector Interface7-16 DIN
Connector TypeOMNI FIT™ PREMIUM Straight
Sealing MethodThreaded Gasket + 360° Compression
GenderMale

Electrical Specifications

Nominal Impedance, ohmsOhm50
3rd Order IM Product @ 2x20 Watts dBc-163 ; typical -167
Maximum Frequency GHz 3.7
VSWR, Return LossVSWR (dB)0 < f ≤ 1.0 GHz: 1.02 (40)
1.0 < f ≤ 2.7 GHz: 1.03 (36.6)
2.7 < f ≤ 3.7 GHz: 1.06 (30.7)

Mechanical Specifications

Plating Outer/InnerNiTin/Silver
Length mm (in)47.2 (1.9)
Outer Diameter mm (in)35.8 (1.4)
Inner Contact AttachmentSpring Finger
Outer Contact Attachment360° clamping

Accessories

Wrench size front mm (in)22 (7/8)
Wrench size rear mm (in)22 (7/8)
Trimming ToolTRIM-12-S06
TRIM-SCF12-D01-A

Testing and Environmental

Waterproof LevelIP68

External Document Links

Notes
