HCH-550-1R
Cable hanger for Air Dielectric Cable

Rev : C | Rev date : 09 Dec 2013
Hangers for the installation of Air Dielectric Cable® cables on different supporting profiles.
Cable Clamp and Extended Counterbed hot-galvanized steel
Screw: stainless steel.

FEATURES / BENEFITS

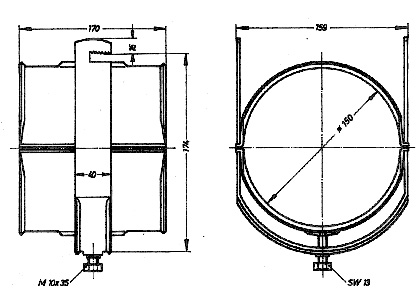

picture shows the 1L4 version
for illustration purpose only

Technical features

General Specifications

Product LineCoaxial Cable Accessories
Product TypeHanger
Hanger TypeFlat iron 6-12mm (0.24-0.47")
Transmission Line TypeHCA550
Cable TypeAir Dielectric

Mechanical Specifications

Cable Size5-1/2
MaterialCable Clamp : hot-dip galvanized
Extended Counterbed : hot-dip galvanized
Screw: Stainless steel
Recommended / Maximum Clamp Spacing m (ft)1 / 2 (3.3 / 6.6)

Temperature Specifications

Operation Temperature °C (°F)-50 to 85 (-58 to 185 )
Storage Temperature °C (°F)-50 to 85 (-58 to 185 )

Packaging Information

Package Quantity1

External Document Links

Notes

Hangers for flat iron 6-12 mm (0.24-0.47")
