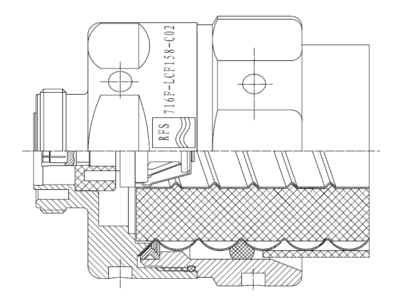

716F-LCF158-C02
7-16 DIN Female Connector for 1-5/8" Coaxial Cable, OMNI FIT™ standard, O-ring sealing

Rev : D | Rev date : 27 Jul 2022

OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminum) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS Technologies connectors are fully tested for mechanical and electrical compliance to industry specifications.
The 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions.

FEATURES / BENEFITS

Cost effective two-piece design for safe and easy installation
Compatible with copper and aluminium cable types i.e. one connector for both outer conductor materials eliminates the risk of faulty connector installation and helps to keep inventory down
Robust mechanical design for low and consistent intermodulation performance i.e. keeps the mobile network performance up reduces the number of dropped calls and avoids revenue losses
Superior electrical performance for consistent and repeatable VSWR i.e. ensure network system performance
Waterproof to IP 68 i.e. no downtime risk, secures revenue
RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis

OMNI FIT™ Standard Connectors

Technical features

General Specifications
Transmission Line Type	Coaxial Cable
Cable Size	1 5/8
Cable Type	Foam Dielectric	Radiating
Model Series	LCF158-50 Series	RCF158-50 Series
Connector Interface	7-16 DIN
Connector Type	OMNI FIT™ Standard
Sealing Method	O-ring
Gender	Female

Electrical Specifications
Nominal Impedance, ohms	Ohm	50
3rd Order IM Product @ 2x20 Watts	dBc	-159 typical
Maximum Frequency	GHz	2.75
VSWR, Return Loss	VSWR (dB)	0 < f=1.0 GHz: 1.03 (36.6) 1.0 < f=2.2 GHz: 1.04 (34.1)

Mechanical Specifications
Plating Outer/Inner		Trimetal/Silver
Length	mm (in)	64.6 (2.54)
Outer Diameter	mm (in)	62.9 (2.5)
Inner Contact Attachment		Spring Finger
Outer Contact Attachment		Spring C-Ring

Accessories
Wrench size front	mm (in)	Open end wrench 55 (2-1/6)
Wrench size rear	mm (in)	Open end wrench 60 (2-1/3)
Poly Hook Spanner	mm (in)	PHS 60-90-5 Ø 60-90 (2.3-3.5) Pin 5 (0.2)

Testing and Environmental
Waterproof Level		IP68
